Fabricating Technology Tooling and Accessories
Check out the latest fabrication technology for 2016!
Date: February 1, 2016

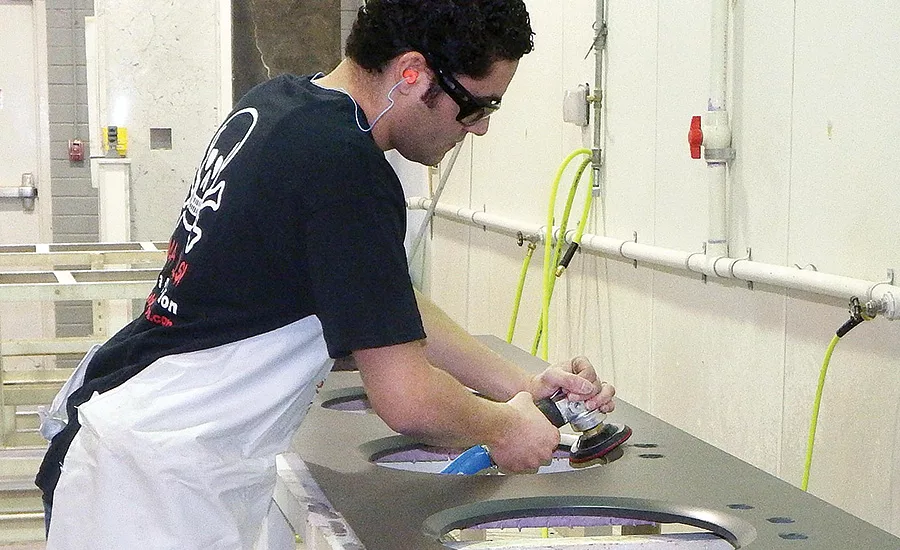

Air and Water Treatment
Alpha Professional Tools
Air and Water Treatment
Clean air is the key to eliminating potential problems with air tools. When we talk to our customers on the phone about air tool problems, they all talk about the state-of-the-art air system they have in the back room of their plant. Unless copper or plastic lines are used throughout, even the best of systems cannot avoid contamination in the lines. As the air travels through the steel distribution lines, it picks up rust and contamination along the way. In a proactive step for air tool longevity, Alpha® has created Filter/Regulator (F/R) manifold systems designed for installation at the point of use. By installing this manifold system at this location, and only using brass and aluminum after the filter, it prevents the rust, contamination and condensation in the air from getting into the tools. The pressure regulator also allows the reduction of air pressure to the PSI rating of the air tool maximizing performance.

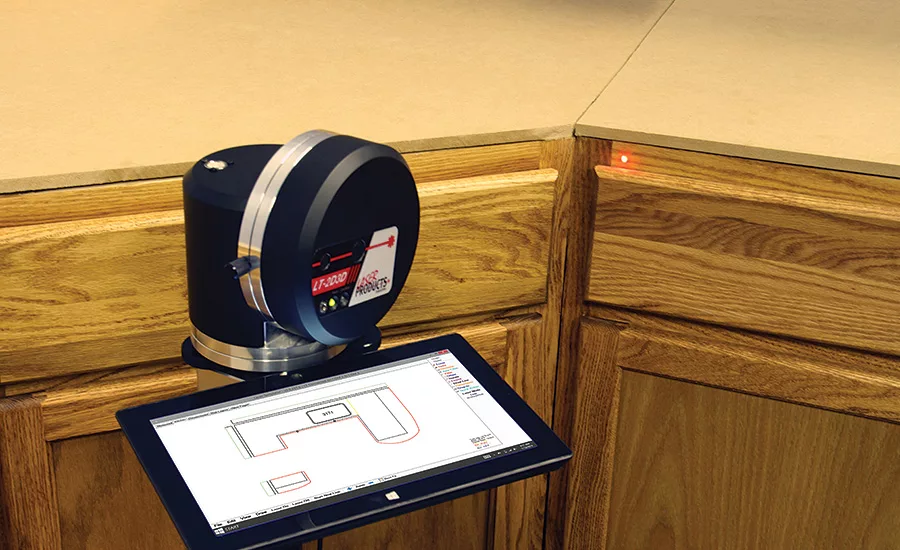

LT-2D3D Laser Templator
Laser Products Industries
Electronic Templating
The LT-2D3D Laser Templator was the winner of the 2015 Best Product Award at The International Surface Event (TISE). The LT-2D3D is designed to increase efficiency and accuracy, while reducing production costs and decreasing headaches caused by other methods of templating. It allows users to template countertops, backsplashes, cabinets, stairs, shower enclosures, tub decks, windows, boat covers, boat hulls, awnings, shade sails or anything else you can think of measuring. Carrying an accuracy of ± 0.04” at 325’ is only part of what makes it the most popular templating system on the market. The software is custom designed to allow anyone to quickly and efficiently learn and excel as a templator. It is translated into 13 languages so it can be used all over the world. Integration with JobTracker, 2020 and Cabinet Vision allow efficient and seamless transitions from each step of your production process. Above all else, Laser Products Industries is proud that its lasers are made in America by American workers.

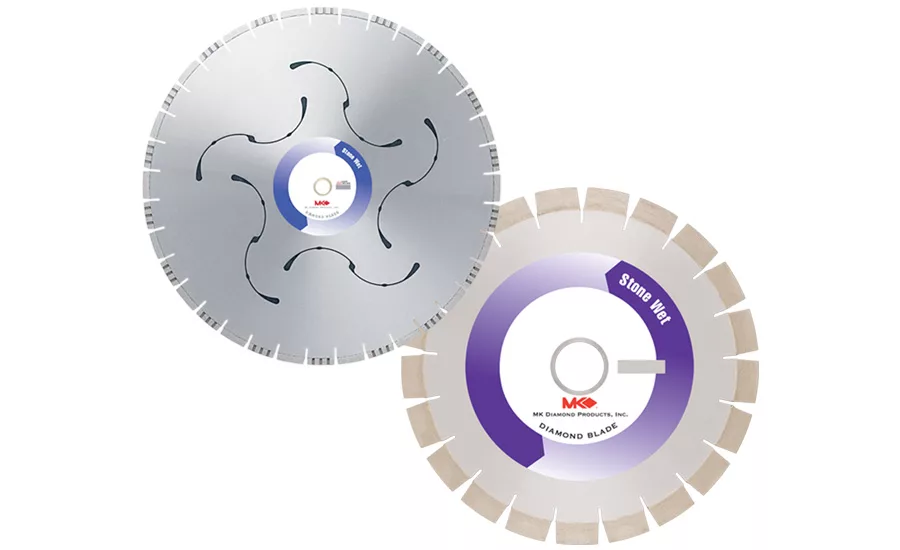

MK-62GSPV Professional Grade Silent Core Diamond Blade
MK Diamond Products
Tooling and Accessories
MK Diamond Products offers an array of professional silent core diamond blades for cutting granite and marble. The silent core diamond blade has a specialized core that reduces vibration and noise. This is beneficial on jobsites where controlling the cutting noise level on a jobsite is an issue and a quieter blade reduces the chance of hearing loss for an operator. Reduction in sound level produces lower vibration that will increase tool life.
The MK-62GSPV Professional Grade Silent Core Diamond Blade is a cost effective laser cut core with epoxy filled silencing material that provides limited noise reduction/suppression. The alternate segment design combines smooth and turbo sections producing clean, fast cuts through hard stone. Diameters available are 14 to 24 inches.
The MK-62GSL-P and MK-62MSL-P blades have sandwich laminated silent cores. The sandwich core is manufactured with two steel cores laminated with a copper center that provides the greatest sound reduction. These high-performance blades are for cutting granite and marble slab. Diameters available are 14 to 18 inches.

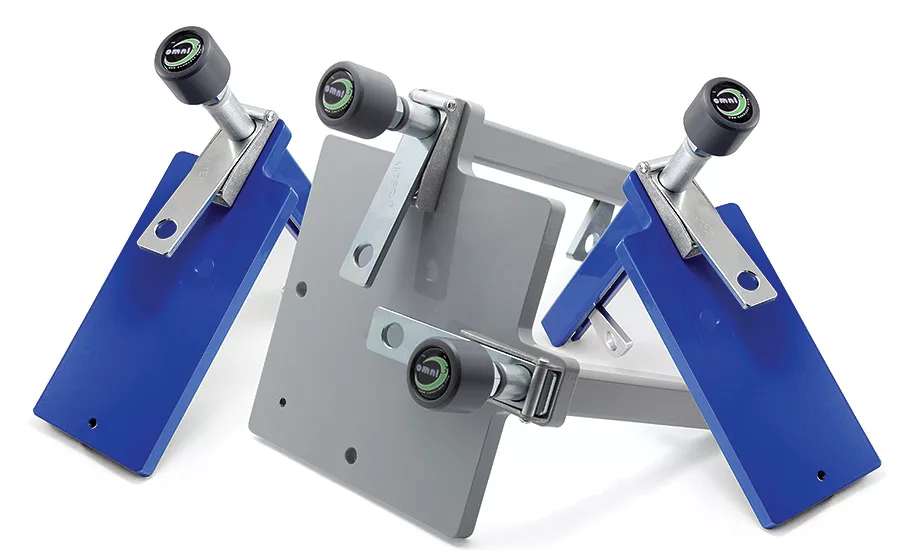

Miter-It
Omni Cubed
Diversified Shop Products
The Miter-It™ simplifies finished-side-up mitering by securely holding apron edges at a perfect 90-degree angle, eliminating the need for extra hands to position the material. This jig offers coarse and fine adjustment settings to quickly achieve exact and tight seams. Not flipping the material offers numerous benefits, including increased personal safety, reduced risk of material damage and keeping the seam in view during lamination. The weight and non-marking feet hold the clamp and apron piece in place -- without the need for unreliable, flip-lever suction cups. The Miter-It™ avoids the numerous awkward adjustments that other miter rigs require, and produces better results than taping methods alone. This patented labor-saving jig is made of durable, powder-coated steel, and can accommodate 11/2- to 6-inch laminated edges.
Draw & Quote
Prodim
Software
Draw & Quote is a simple standalone software solution for countertops and backsplashes. The new software application enables companies to instantly create a sketch without measuring, based on the customer’s wishes. It limits the need of other CAD programs, is fast and has a simple user interface with special stone features. It is possible to add profiler edges, insert cut-outs and add materials from adaptable libraries.
Create drawings based on (basic) dimensions or edit CT sketches created by a Proliner with CT software. Once the digital sketch is finished, a detailed quote (PDF) can be generated based on the sketch, prices for the materials and company services. In short, a customer gets all the information he needs and a deal can be closed within a few easy steps.
Prodim also released Slab Factory, a standalone software solution for digitizing your slabs. It helps to keep your slab stock clear and up-to-date. You can mark defects on your slab and if you are a fabricator, use the digitized slab for matching as well.

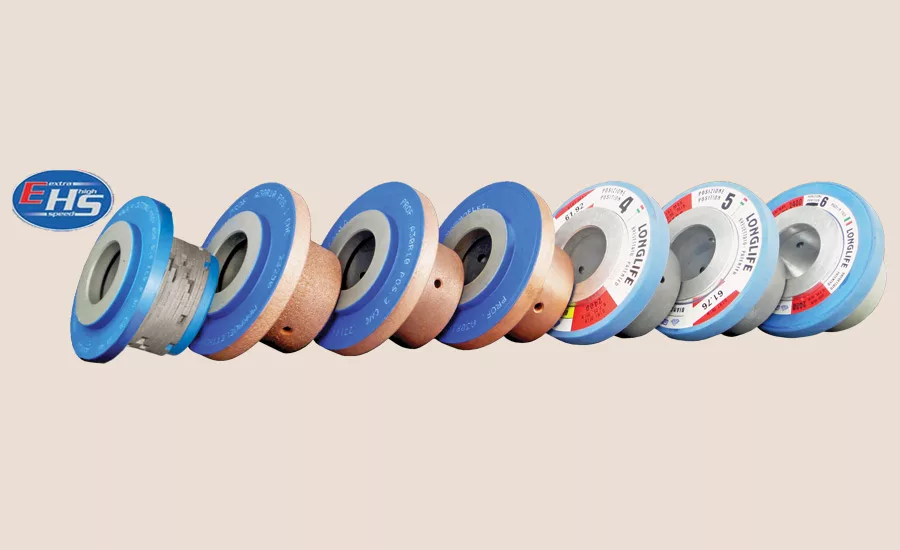

Extra High Speed (EHS) line of CNC profile wheels
Regent Stone Products, Inc.
Tooling and Accessories
Marmoelettromeccanica has produced another groundbreaking revelation in the stone countertop industry. The Extra High Speed (EHS) line of CNC profile wheels, which is available through Regent Stone Products, Inc., can run at speeds twice that of any other competition on the market. The three metal profile wheels will run at speeds as high as 400 inches (10,000 mm) per minute. Through extensive research, Marmoelettromeccanica has a developed a new matrix of diamonds and metals that are capable of these never seen before speeds. By using a high percentage of copper in the matrix, these wheels can diffuse heat much better and keep the diamonds functioning at a high level. They are also offered at 40 to 50% less than other high speed wheels on the market. This makes them a great value for the high production fabrication shops.

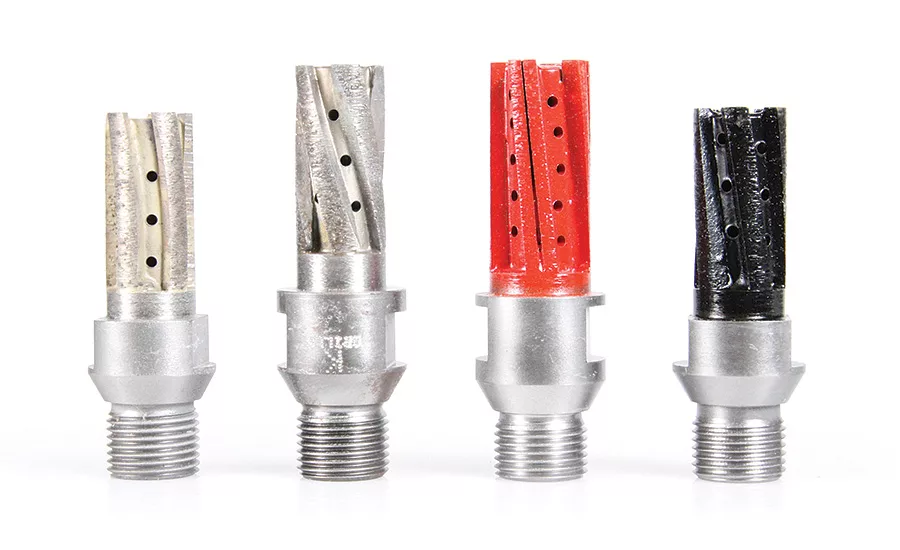

CNC tooling
Salem Stone
Tooling and Accessories
Salem Stone began selling stone CNC tooling in 2002 and today represents the finest lines of tooling on the market. Finger bits are widely used tools for sink cutouts in countertop fabrication and customers are looking for the highest quality, consistency and reliability in these tools. BDT, Indiam and KDrills are three of Salem’s most popular brands of finger bits. Available in a wide variety of sizes and lengths for either manual or CNC operations, we supply hundreds of satisfied customers with repeat sales and an almost zero return rate. Salem Stone continues to grow in this very competitive market by offering any finger bit you need in a price range to fit your budget. Contact Salem Stone today for more information on CNC tooling.

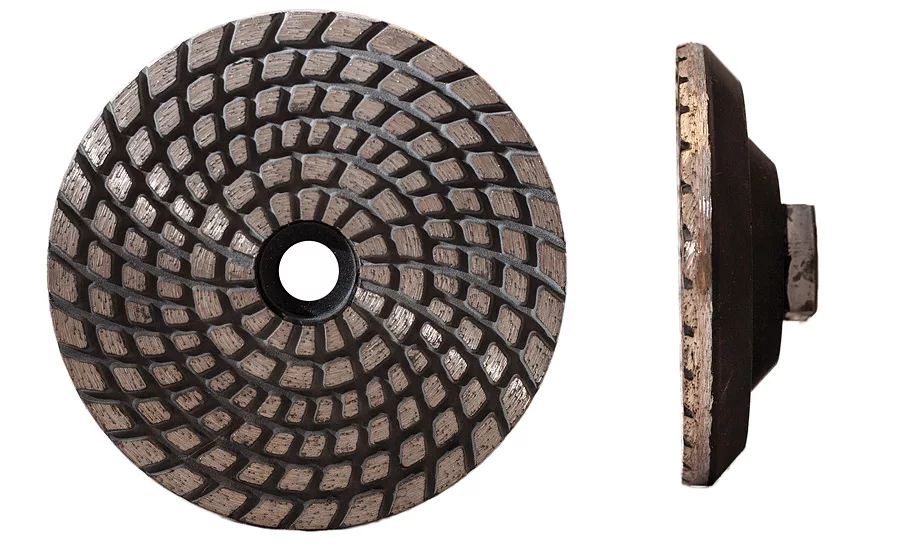

New Panther 4 - inch FlexCup
stone boss
Panther 4” FlexCup
Available exclusively through Stone Boss, the New Panther 4 - inch FlexCup is a super smooth, extremely quiet cup wheel, mounted on a rubber flexible backer. It’s designed for low RPM tools and works exceptionally well on air polishers. Its unique bonding technology allows the tool to stay sharper longer, cut cleaner and has outstanding finish quality. “wet use only” “max rpm 3500”

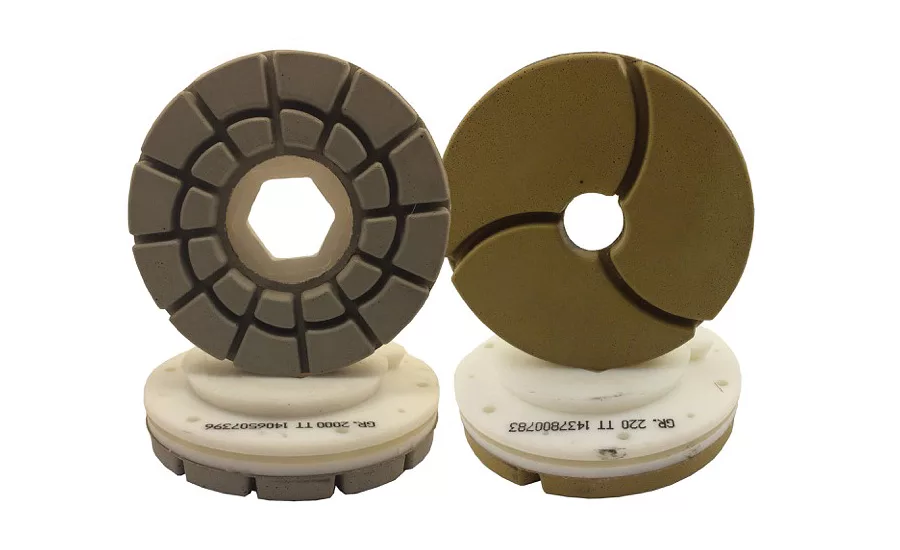

Tenax automated edge polishing wheels
Tenax
Tooling and Accessories
Tenax automated edge polishing wheels are designed for both single and multi-head line machines. They may be used on GMM, Cemar, Breton, Marmo Meccanica, Park Industries, Sasso, Omega, Montresor, USG machines, Comandulli, CMPI, etc. Tenax offers both 5-inch and 6-inch Snail Lock Flat Edge Resin and Bullnose Resin Diamonds.
Benefits of using Tenax In Line Automated Diamond wheels include:
1.) Polish. Tenax automated edge wheels produce a deep, rich polish on both granite and ES materials.
2) No lines. Tenax in-line diamond discs produce that perfect polish without the lines so common in many diamond edge wheels.
3) Life. Hands down Tenax diamond edge wheels will outlast even the most popular edge wheels by two to three times longer. Tenax wheels last between 4,500 to 6,000 feet per set.
4) Less pressure on the machine. Tenax automatic edge diamond wheels run a virtually minimum machine pressure. Average pressure is 2 bars-2 ½ bars.
5) Easy to set up.
6) Less cost per linear foot.
7) Interchangeable wheels.

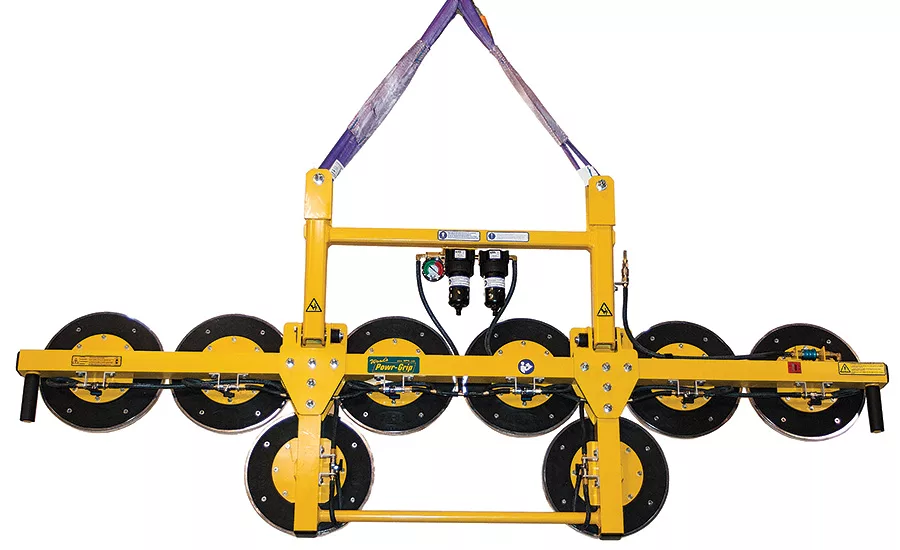

MT (manual tilt) Series Stone Lifters
Wood’s Powr-Grip
Handling and Storage
Specifically designed for handling stone slabs, Powr-Grip’s MT (manual tilt) Series Stone Lifters feature 90-degree tilt using an above-center pivot that enables slabs to hang upright when lifted from storage or display racks and tilt to flat when lowered to bridge saws or work tables. These below-the-hook vacuum lifters are designed with a narrow profile that allows them to fit between tight, vertical, storage racks. Available on-board power systems, which can also be mounted remotely, include AC, DC or compressed air. Standard features include Foam Pad Rings, which enable vacuum pads to attach on saw-cut, honed or flamed stone surfaces, and Individual Pad Shutoffs, for handling irregularly shaped slabs or countertops with sink cut-outs. These vacuum lifters are also available with a Flat Lift Adapter, which enables them to load and unload slab saws, CNC machines or other horizontal processing equipment.
Tooling and Accessories
Blick Industries
Tooling and Accessories
The pneumatic location device for Brembana machines from Blick Industries now comes with an offset base option (Part# 11-601-02). This allows fabricators to place suction cups closer to the edge of a piece, which provides more support along the edge. It can be made with a pin in the base for easy table location or a pin-less base option for placement anywhere on the table. The new 60 mm delrin disc on top of the pneumatic stop is now compatible with the Blick stop locator tool (Part # 19-102-01). And as always, we can add any Blick parts into Easystone for free.

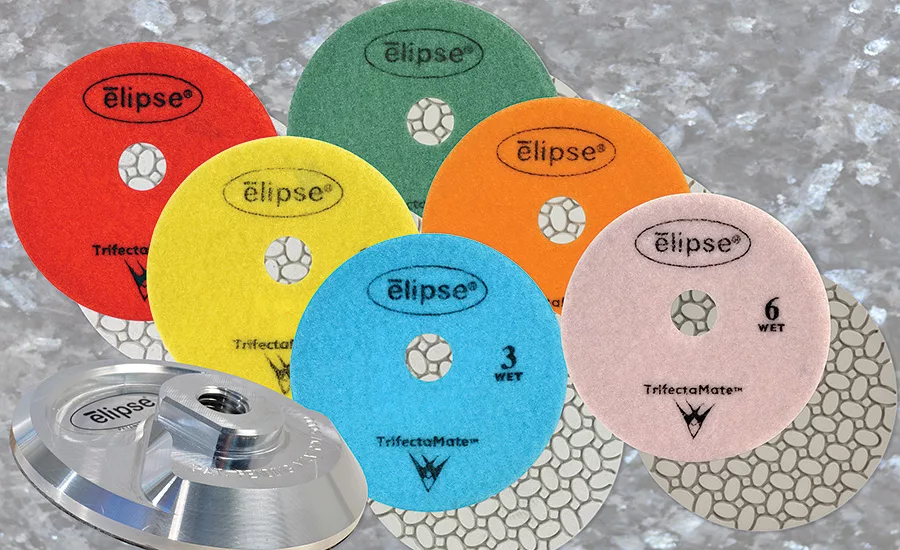

Elipse from Braxton-Bragg
Braxton-Bragg
Tooling and Accessories
Elipse from Braxton-Bragg puts a new spin on polishing — allowing fabricators to save as much as $2 per foot on production costs, reports Braxton-Bragg. Elipse combines TrifectaMate™ Pad Technology with the genius of one of the stone industry’s finest minds, Barry Brandt, and the efficiency of elliptical patterned orbital polishing backer pad.
This breakthrough combination allows you to harness the power of elliptical motion without losing the center water feed vital for stone polishing. The result is a nearly perfect polish with less physical pressure and less manipulation of the hand-held polisher.
In other words, you get a better polish with less effort from your polishing craftsman (50-80% less human energy needed). The combination of cutting edge engineering, manufacturing and labor reduction is the reason Braxton-Bragg can confidently say you’ll save up to $2 per foot on your production costs, according to the company.
The 6-Step Wet Polishing System is suitable for granite, marble, glass and quartz. It is only for use with the Elipse Backer Pad.

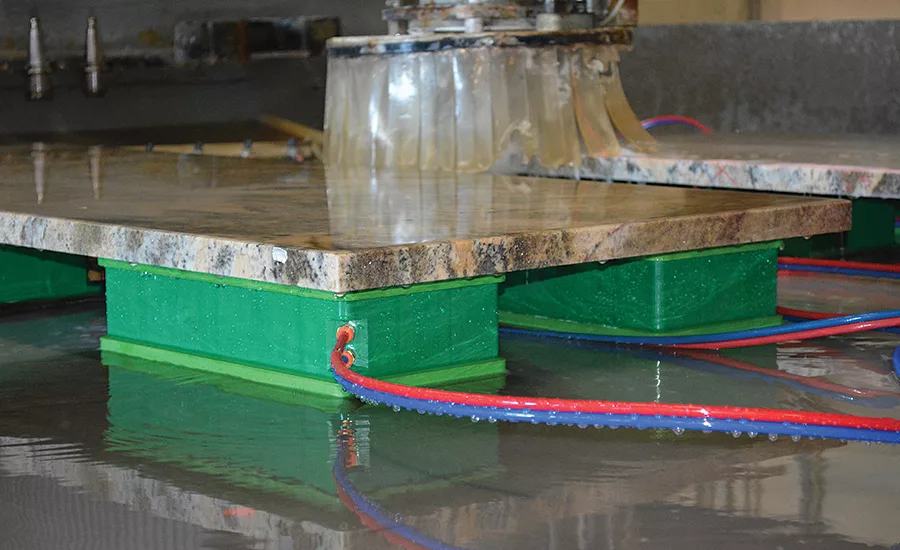

Stone/Glass Vacuum Cup
Better Vacuum Cups, Inc.
Tooling and Accessories
Better Vacuum Cups, Inc. (BVC) offers the SS200400 Stone/Glass Vacuum Cup for CNC machines. They are available in 200- x 400-mm or 8- x 16-inch sizes. There is a replaceable rubber top or bottom if an accidental route damages the vacuum cup. Cups can be used with existing cups and no foam gasket is required. BVC is offering special pricing forStone Worldreaders.

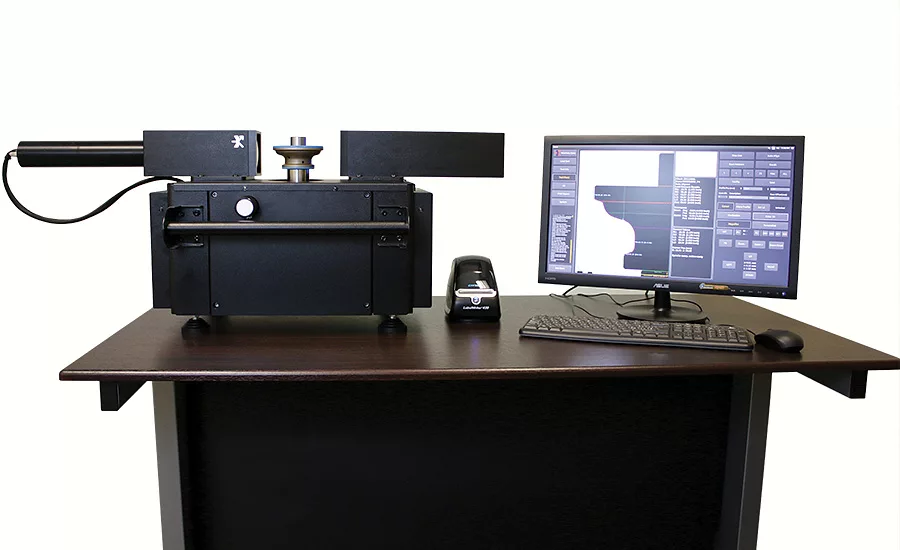

Zares CNC Optical 3D Tool Measuring System
Continental DIA Diamond Products — Terminator
Tooling and Accessories
The new Zares CNC Optical 3D Tool Measuring System — a precise, fully automated, optical CNC tool measuring system — is now exclusively available from Continental DIA Diamond Products — Terminator. For tool set-ups and maintenance, there has never been a more accurate, fast and easy-to-use system built with the needs of a CNC operator in mind.
The Zares Machine:
• Prevents user error.
• Measures a single tool in less than 10 seconds, providing a full 360-degree analysis.
• Measures an entire seven-step CNC set 10 times faster than manual set-ups, and 3 times faster than laser systems.
• Eliminates machine down time and dramatically increases production rates.
• Will measure breakers, metal and polishing profile wheels alike.
• Can be customized to integrate directly with CNC machines.
• Automatically print precise tool labels instantly.
You’ll now truly be able to maintain the life of your CNC tools longer than ever before.

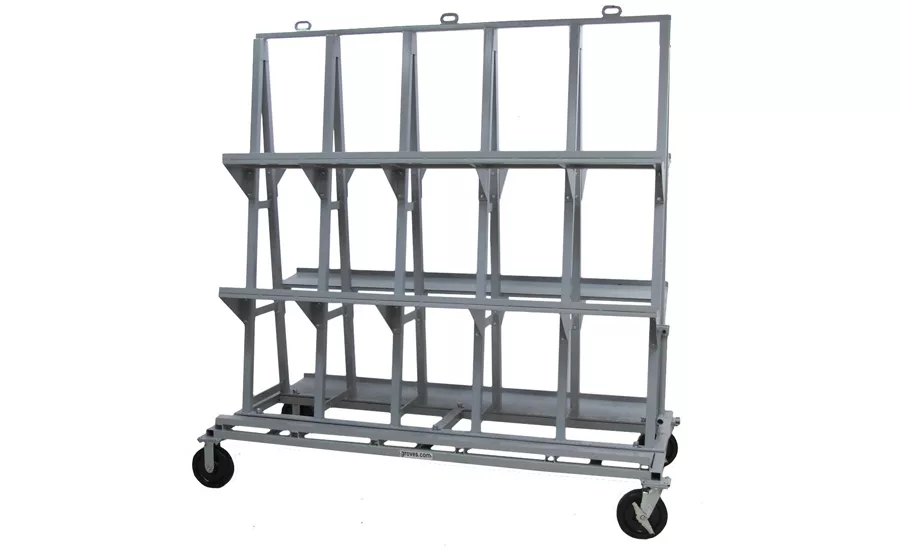

Heavy Duty Backsplash Cart at StoneExpo
Groves Inc.
Handling and Storage
Groves Inc. recently introduced its new Heavy Duty Backsplash Cart at StoneExpo. It features six shelf levels to aid in moving cut backsplash around the shop with a convenient pull handle for maneuverability and Groves’ top-quality casters for smooth traveling.
Model HDBSC8472
• Heavy-duty 3,200-pound weight capacity, when evenly distributed.
• Pull handle mounted on one end for maneuverability.
• Two rigid and two swivel brake 5-inch casters.
• Ships knocked down for freight savings.
• Gray powder coat finish.
• Shelf dimensions are 77.5 inches long x 10 inches deep
84 inches long x 41.5 inches wide x 84 inches high

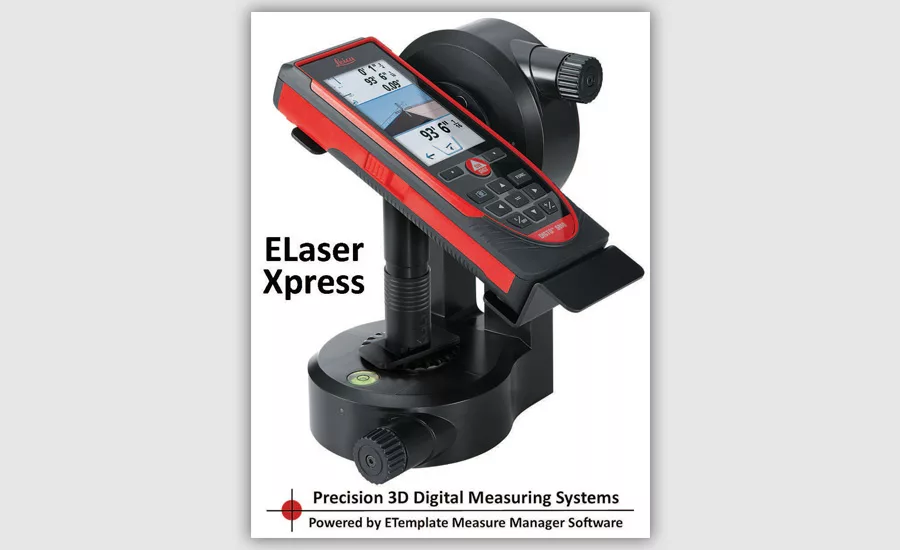

ETemplate ELaser
ETemplate System
Electronic Templating
ETemplate ELaser is the winner of the International Marmomacc’s Best Technology award as the easiest to use and most comprehensive digital templating system in the stone industry. With two configurations of laser hardware and two configurations of ETemplate’s Measure Manager software, the ELaser system can meet any fabricator’s need.
With a fully automated countertop design process, ELaser provides the ultimate performance and the lowest price in a simple and compact system, according to ETemplate System. In just two mouse clicks, the user not only captures the cabinet and wall layout, but creates a comprehensive countertop design as well.
Using a simple dialog box, the user can define the required overhang, corner radii, backsplash configuration, wall offsets for installation clearance and other design options based on the contractor, the material type, the edge style or any other factor. Additional automated tools provide scanning of wall scribe, creation of seam breaks and measuring cabinet level.
With full 3D measuring capability, ELaser easily measures full height splashes, showers, tub surrounds and even large cladding or floor layouts in commercial buildings.

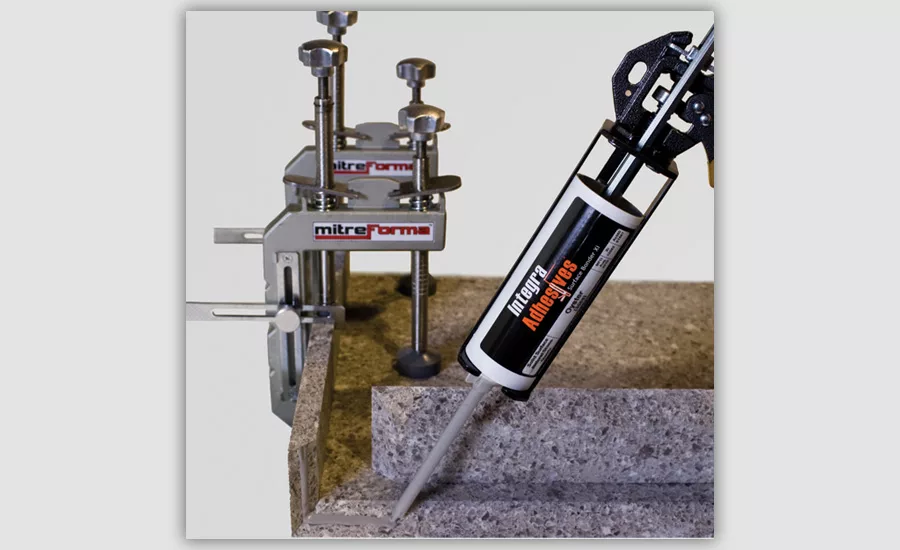

MitreForma Clamp
Integra Adhesives
Diversified Shop Products
Integra Adhesives is proud to offer the MitreForma Clamp, a fabrication tool designed specifically for creating mitre fascia in a quick, precise and fool-proof way.
The MitreForma clamp is a key component in the Integra Miter System. Combined with Integra Surface Bonder, you have the tools to assemble seamless 90-degree mitered edges in a fraction of the time compared with other methods.
Available in two sizes, the MitreForma Clamp cuts preparation time by up to 75% and saves valuable labor time. The smaller standard size is currently available at a special price throughout the U.S.

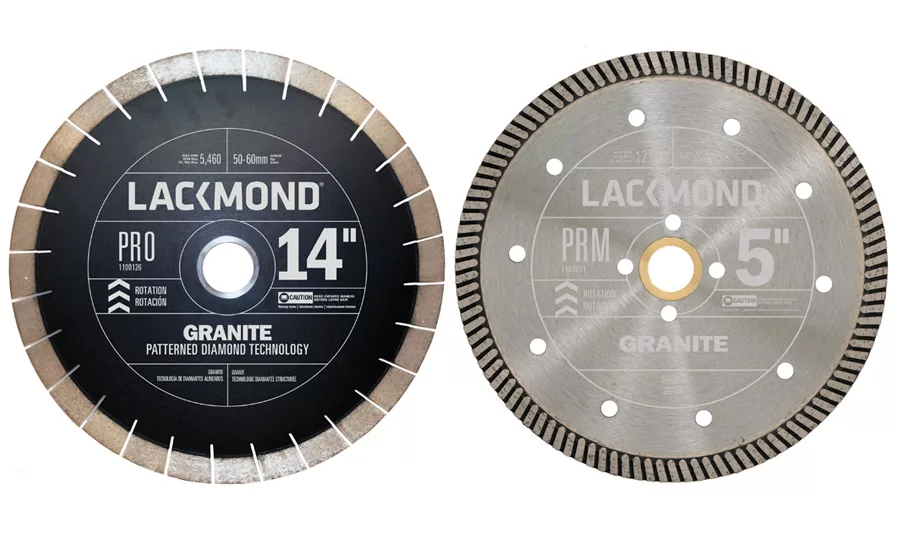

Lackmond Series Granite Turbo blade
Lackmond Stone
Tooling and Accessories
Lackmond Stone, a leading distributor of professional tools and equipment, has introduced two new blades. The Lackmond Series Granite Turbo blade is designed for cutting granite, marble, engineered stone and other hard natural stone. It is engineered with premium diamonds and a specially designed diamond matrix with narrow cutting flutes. The narrow flutes allow for an aggressive, clean chip-free cut. Lackmond’s PRM Granite Turbo Blades are among the fastest, most aggressive cutting blades on the market, according to the company. They are available in 4 ½, 5, 6 and 7 inches and can be used dry or wet.
Pattern diamond technology continues to evolve and Lackmond’s new PRO bridge saw blade is manufactured using the latest in diamond pattern technology, where the diamonds are arranged in a specific order resulting in consistent wear and cutting.
The Lackmond PRO bridge saw blade is designed to be used on granite, marble, engineered stone and other natural stone. It is equipped with tall 26-mm segments, which allows for increased life, even in the most demanding stone applications. The Lackmond Pro bridge saw blades are available in 12 to 18 inches and are ideal for use on 15+ HP saws.
