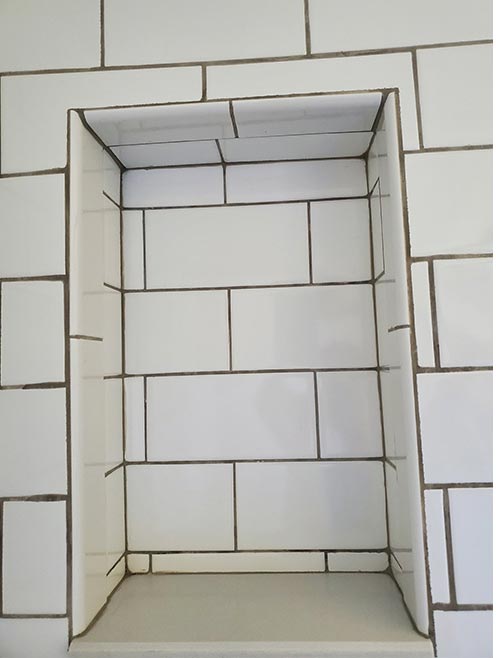

This is an example of what not to do when installing a shower niche; the depth of the niche being approximately six inches, the required slope should have been 1/8”. Photo: Scott Carothers.

One nice feature of this niche is the solid surface material used for the bottom of shelf, but that is where the nice features end. The bottom shelf must slope toward the drain at the rate of ¼” per foot. In this case, the depth of the niche being approximately six inches, the required slope should have been 1/8” rather than being dead level or even worse, sloping toward the back wall.

Whenever possible, adjust the size of the niche to fit within the horizontal wall tile grout joints at the top and bottom. Whether building a custom-sized niche or if necessary, altering a factory-built model, this is critical to obtain an attractive look. As seen here, the top should have been either 1-1/4” higher or 1-3/4” lower to hit the upper grout joint and likewise for the grout joint at the bottom. Using this type of layout eliminates the small cuts inside the niche as well as the unsightly “L” cuts that over time and stress can result in a crack from the 90-degree corner.

Shifting the vertical layout to the right would eliminate the sliver cuts on the right side of the niche while widening the opening to two full tiles would have worked nicely. Primarily, the size of the niche would be determined by the tile contractor collaborating with the consumer, but good suggestions from the tile installer can reap visual benefits.

The available bullnose size for this job was 3” x 8” with the round edge being the 8” side. For the grout joints to flow continuously, the bullnose needs to be cut and sanded to align with the 3” side of the field tile.  Similarly, the bullnose needs to be cut to match the grout joint(s) at the top of the niche.

Lastly, a few moments spent on sanding the field tile cuts against the bullnose adds a finishing touch to a quality installation.
