Sound control is another beneficial function as one type of the membrane, Schluter^®-DITRA-HEAT-DUO-PS, contains a thicker fleece layer to reduce sound transmission and increase the delta impact insulation class (IIC) rating, which is a number rating of how well the floor of a building reduces impact sounds, such as footsteps. The test to determine a membrane’s IIC is performed using a tapping machine specified in American Society for Testing and Materials (ASTM) method, E492. The larger the number, the more sound reduction the membrane provides when installed. The Schluter^®-DITRA-HEAT-DUO-PS membrane combines the original four basic functions of the thin-set versions, while including ease of heating cable installation and sound control in a single step. The uncoupling properties of the PS membranes indicate that the membrane, when installed under tile, absorbs movement from the substrate beneath to help prevent tiles from cracking or becoming loose. The peel-and-stick membranes are composed of polypropylene, which protects the substrate from moisture penetration, adding to its waterproofing abilities. The free space underneath each of the PS membranes provides an access route for excess moisture and vapor to escape from the substrate, instead of penetrating the floor covering above, which contributes to its vapor management. When the surface covering over the PS membrane is installed with thin-set mortar, the studs on the upside of the membrane are filled with mortar, which causes the studs to become non-collapsible and provides high support/load distribution.

Benefits

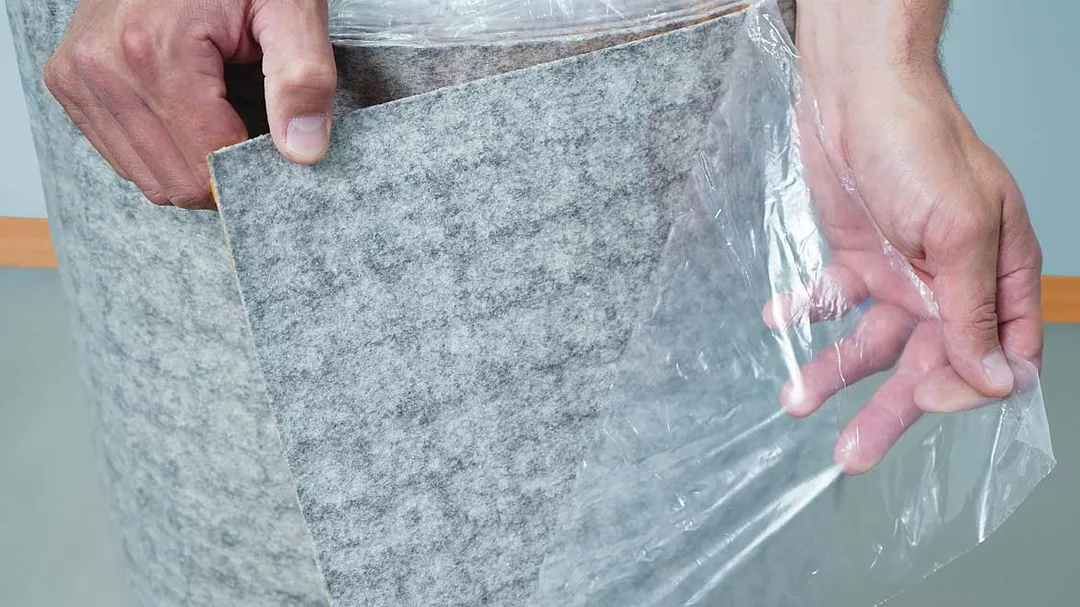

Along with the benefits of the peel-and-stick membrane’s core functions mentioned above, the ease of installation is apparent. All that must be done for a proper installation is to peel off the release film from the fleece side of the membrane and adhere to the substrate. Until the adhesive side of the membrane is fully adhered by using force to push the membrane onto the substrate, it can be moved and replaced as necessary. The adhesion provided by the pressure-sensitive adhesives used for the PS membranes increases over time, and traffic on the surface of the tile installation further improves the bond. No thin-set mortar required; thus, saving time and effort.  Who doesn’t want a faster installation time? The quicker an installer can schedule that he or she will have the flooring complete, the more desirable the installer, right? With PS, the tile installer will be able to get the underlayment job done in potentially half the time, which will allow him/her to perform more jobs over all in approximately the same amount of time it takes to do them when thin-set mortar is used to bond the uncoupling membrane to the substrate. As long as the substrate is handbook approved (clean, even and load bearing), the PS membranes will provide a secure bond as a favorable base for any tile or natural stone installation. An appropriate primer can also be used with these membranes over any difficult-to-bond-to substrate or for increased adhesion, when required. A list of approved substrates can be found in the DITRA-HEAT technical data sheet or installation handbook via Schluter.com.

Wet Areas

Although peel-and-stick membranes are primarily installed in dry interior environments, they can also be used in showers. However, there are a few things to consider before installing them in interior environments exposed to moisture. While the thin-set mortar versions of the membranes are approved for use in wet areas as they comply with ANSI A118.10, the PS versions do not comply with this standard. Fortunately, PS membranes can be covered with the Schluter^®-KERDI waterproofing membrane, in conjunction with the necessary waterproofing membrane components, to make the installation waterproof.

Summary

The recently introduced peel-and-stick uncoupling membranes are widely available, successfully perform multiple core functions and are beneficial to almost any tile or natural stone installation.  These membranes have many positive attributes when a tile or stone application is desired, especially within dry interior environments, where uncoupling properties may be helpful or necessary. Because thin-set mortar is not required to adhere the peel-and-stick membranes to wood or concrete substrates, the installation time is greatly decreased. The PS membranes feature a pressure-sensitive adhesive backing under the fleece layer that uniquely increases in adhesion based on the amount of traffic applied over the application. To find out if peel-and-stick membranes would benefit your installation, refer to Schluter’s DITRA-HEAT technical data sheet and other literature items currently available on the topic by navigating the Schluter.com website or reach out to your local Schluter representative.
